CH7213C

If you have questions about the product, or encounter any, you can register the site account,
Then go to the technical support forum to ask for help.

FEATURES

  1.   Compliant with Type-C Specification Revision 1.2
  2.   Compliant with the Power Delivery Specification Revision 2.0, Version 1.1
  3.   Supports VESA DisplayPort Alt. Mode 1.0a
  4.   Bi-directional conversion between the HPD signal and Power Delivery VDM
  5.   Support DisplayPort AUX Channel DC voltage level detection
  6.   Rp and Rd resistors integrated
  7.   Built-in Ra termination resistor
  8.   USB Type-C SBU and DisplayPort AUX Channel switch integrated
  9.   Integrated USB Billboard Class, Version 1.21 for supporting USB Type-C Alt. Mode
  10.   Support VCONN power. 5V to 3.3V and 3.3V to 1.2V Regulator integrated to save BOM cost
  11.   Embedded MCU and EEPROM
  12.   IIC slave interface
  13.  Firmware update capability
  14.  Crystal free
  15.  RoHS compliant and Halogen free package
  16.  Offered in 16-Pin QFN (4x4 mm)

DESCRIBE

Chrontel’s CH7213C is a low cost USB Type-C logic controller. The device is targeted for system designers implementing USB Type-C devices with DisplayPort capabilities and USB Power Delivery 2.0 support.CH7213C’s robust Power Delivery 2.0 module using the BMC protocol can enable USB Type-C devices operating in various power management roles including Consumer and Provider. The DisplayPort Alt. mode is another alternative interface supported in the CH7213C. A builtin Billboard Class can be automatically exposed to the USB 2.0 D+/- bus if a Type-C PD Source (DFP) does not equip USB Type-C Alt. Mode features that support DisplayPort signal transmission. The system with CH7213C’s DisplayPort Alt. mode enabled can be
programmed to support Type-C to DisplayPort display or DisplayPort to a Type-C DP Alt. mode monitor. The CH7213C’s bi-directional signal converter for the DisplayPort HPD (hot plug detection) and VDM (Vendor Defined Message) is capable of translating the HPD to the appropriated VDM to Type-C DP device and vice versa.In addition to hardware support of PHY and Link layers,the CH7213C has an internal microprocessor to handle the cable logic communication and can be programmed for customization according to the application of USB Type-C platforms. For reducing the BOM cost of final products, the CH7213C integrates all necessary components and circuits, such as LDO, clock generation isolation circuit,Ra, Rd and Rp etc.

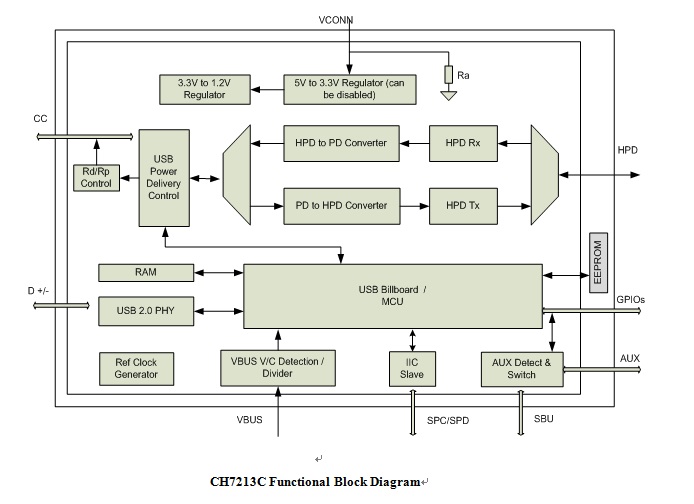

STRUCTURE DIAGRAM

DATA SHEET

APPLICATION DESC

暂无信息

TECHNICAL REPORT

暂无信息

SPECIFICATIONS

暂无信息

ORDER INFO

暂无信息

VIDEO

暂无信息
